PS5 No Signal? How to Tell If the HDMI Port Is Damaged
25 Sep 2026
If your PS5 turns on but your TV shows “No Signal,” a damaged HDMI port is one of the first things that should be checked. However, the HDMI connector is not the only possible cause. A bad HDMI cable, damaged pins, broken motherboard traces, or a problem with the HDMI circuitry can produce similar symptoms.
At Mobile2Fix, we diagnose and repair game consoles for customers in Boca Raton, Deerfield Beach, and surrounding South Florida areas, including HDMI port replacement and board-level problems.
Common signs of a damaged PS5 HDMI port
A damaged PlayStation 5 HDMI port can cause several different symptoms. Some are obvious, while others can look like a completely different console problem.
• TV displays “No Signal” when the PS5 is connected
• PS5 powers on with a white light but no picture appears
• HDMI cable feels unusually loose
• Picture cuts in and out when the HDMI cable moves
• Bent or missing pins are visible inside the port
• The HDMI port looks pushed inward
• The display only works when the cable is held at a certain angle
• The console stopped displaying after being dropped or moved while connected
Physical HDMI damage is especially common when a console is moved while the HDMI cable is still connected. Pressure from the cable can damage the connector, solder joints, motherboard pads, or traces underneath the port.
Check the easy things first
Before assuming your PS5 needs an HDMI port replacement or motherboard repair, there are several simple tests you can perform.
Try another HDMI cable
A damaged HDMI cable can cause the same “No Signal” message as a damaged PS5. Try a known-good HDMI cable before assuming the console itself needs repair.
Try another HDMI input
Connect the PlayStation 5 to another HDMI input on your television. A defective TV input can sometimes make it appear that the console has stopped producing video.
Test another television or monitor
If possible, connect the PS5 to another TV or monitor. If the problem follows the console, that provides a stronger indication that the PlayStation itself needs diagnosis.
Inspect the PS5 HDMI port
Use a flashlight and carefully look inside the HDMI connector on the back of the PS5.
You should not see:
• Bent HDMI pins
• Missing or broken internal plastic
• Pins touching each other
• A connector that moves excessively
• An HDMI port pushed inward or out of position
Avoid inserting metal tools or other objects into the HDMI port. The internal contacts are very small, and additional damage can make the repair more difficult.
What if the HDMI port looks fine?
This is where proper diagnosis becomes important.
A PS5 can have no video even when the HDMI connector looks completely normal from the outside.
The problem can also involve:
• HDMI signal circuitry
• Filters or protection components
• Damaged motherboard traces
• HDMI-related integrated circuits
• Previous repair damage
• Liquid or corrosion damage
This is why replacing an HDMI port without first checking the motherboard is not always the correct repair. Two consoles can have exactly the same “No Signal” symptom while having completely different failures.
What we check during a PS5 HDMI diagnosis
When a PS5 arrives at our repair bench with no video, we first look for physical damage and evidence of previous repair attempts.
Depending on the symptoms, we may inspect:
1. HDMI connector condition
2. HDMI pins and solder joints
3. Motherboard pads and traces
4. HDMI signal lines
5. Related board-level components
6. Evidence of corrosion or overheating
When necessary, the HDMI area is inspected under magnification or a microscope. This allows us to identify damage that may not be visible to the naked eye.

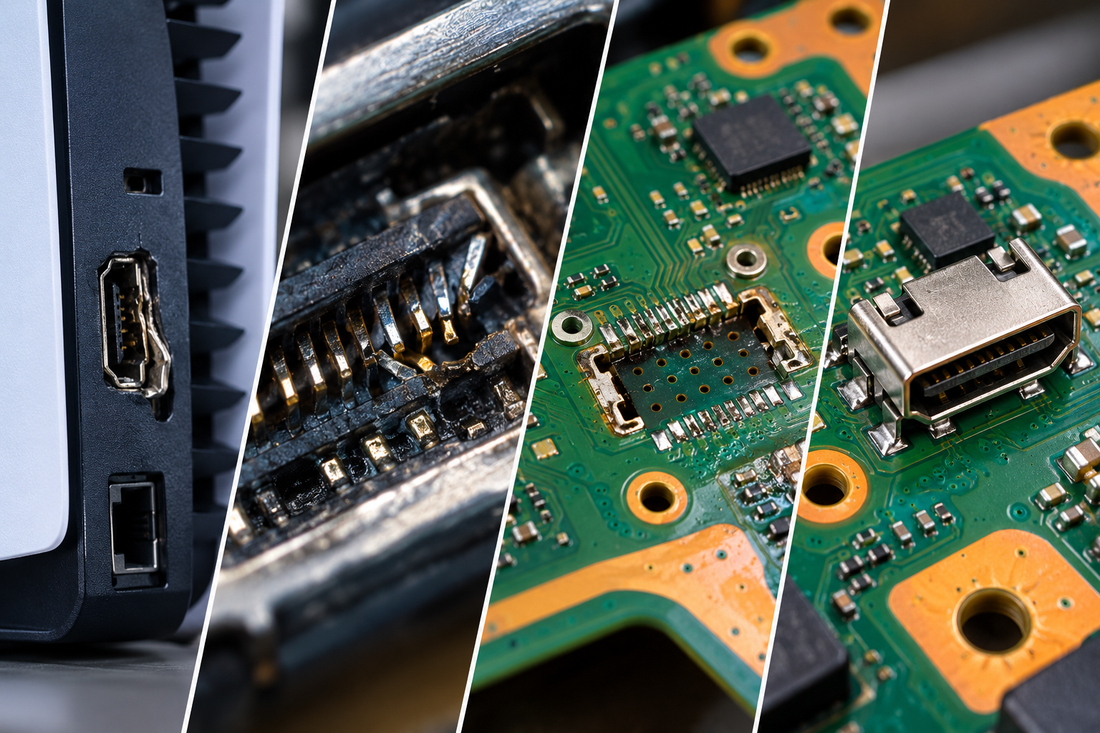

Can a PS5 HDMI port be replaced?
Yes. A damaged PS5 HDMI port can usually be replaced.
Unlike a cable or modular part, the PS5 HDMI connector is soldered directly to the motherboard. Replacing it requires specialized micro soldering equipment and experience working with board-level electronics.
The repair process typically includes:
1. Disassembling the PlayStation 5
2. Removing the motherboard
3. Inspecting the damaged HDMI area
4. Removing the damaged HDMI connector
5. Cleaning the motherboard pads
6. Checking for missing pads or damaged traces
7. Installing and soldering the replacement HDMI connector
8. Testing HDMI video output
9. Reassembling and final-testing the console
If the motherboard underneath the HDMI port is intact, the repair is generally more straightforward. If pads or traces have been damaged, additional board-level work may be necessary.
Can the motherboard be damaged when the HDMI port breaks?
Yes. A hard impact can damage more than just the metal HDMI connector.
Because the HDMI port is attached directly to the motherboard, physical force can pull solder pads, damage traces, or affect small components near the HDMI circuit.
This is especially common when a console falls, gets hit, or is moved while the HDMI cable is still connected.
What if someone already tried to replace the HDMI port?
A previously attempted PS5 HDMI repair may still be repairable, but it can require additional work.
Previous repair attempts can sometimes leave:
• Missing motherboard pads
• Damaged HDMI traces
• Excess solder
• Heat damage
• Misaligned HDMI connectors
• Damaged nearby board components
In these situations, the motherboard should be carefully inspected before another HDMI connector is installed.
The important question is whether the motherboard connections can be restored properly so the HDMI signal can travel through the circuit again.
How long does PS5 HDMI port repair take?
Repair time depends on the condition of the motherboard, current repair workload, parts availability, and whether additional board-level damage is discovered.
A console with a damaged HDMI connector and an otherwise healthy motherboard is different from a console with missing pads, broken traces, or damage caused by a previous repair attempt.
Contact Mobile2Fix for current turnaround information before bringing in your console.
Should you repair a PS5 with a broken HDMI port or replace it?
In many cases, repairing the HDMI port can make more sense than replacing the entire PlayStation 5.
Before deciding, consider:
• The overall condition of the console
• Whether the PS5 has other problems
• The cost of the repair
• The cost of replacing the console
• Whether the motherboard itself is repairable
A proper diagnosis gives you the information needed to compare repair against replacement instead of making the decision based only on the “No Signal” symptom.
How to help prevent PS5 HDMI port damage
HDMI ports are often damaged by physical pressure rather than normal everyday use. A few simple habits can reduce the risk.
• Disconnect the HDMI cable before moving the PS5
• Do not pull the console while cables are still attached
• Avoid forcing an HDMI cable into the connector
• Make sure the cable is not being pulled sideways
• Keep the PS5 in a stable location where it cannot easily fall
• Replace damaged HDMI cables instead of continuing to use them
If the HDMI cable suddenly becomes difficult to insert or feels unusually loose, stop forcing it and inspect the connector before additional damage occurs.
PS5 HDMI port repair in Boca Raton and Deerfield Beach
If your PS5 powers on but your television displays No Signal, do not automatically assume the console needs to be replaced.
The problem may be a damaged HDMI connector, motherboard trace, or another component in the HDMI signal path.
Mobile2Fix provides game-console diagnostics, HDMI port repair, micro soldering, and board-level repair for customers in Boca Raton, Deerfield Beach, and surrounding South Florida communities.
Frequently asked questions
Why does my PS5 turn on but show no signal?
Common causes include the HDMI cable, television input, damaged HDMI port, damaged motherboard traces, or HDMI-related circuitry.
Can an HDMI port break without looking broken?
Yes. Internal pins or solder connections can be damaged even when the outside of the connector appears normal. There can also be damage underneath the HDMI port that is not visible without disassembling the console.
Does the PS5 HDMI port have to be soldered?
Yes. The HDMI connector is soldered directly to the PS5 motherboard and requires specialized microsoldering equipment to replace correctly.
Is a no-signal PS5 always an HDMI port problem?
No. A proper diagnosis should be performed before replacing the connector because the problem can also involve HDMI circuitry, motherboard traces, signal components, the HDMI cable, or the television.
Will HDMI repair erase my PS5?
An HDMI port replacement normally does not affect the console's stored games or data because the repair is performed on the HDMI section of the motherboard rather than the storage system.
Can Mobile2Fix repair a PS5 that another shop already worked on?
Potentially. Previously attempted repairs need to be inspected because missing motherboard pads, damaged traces, excess heat, or other board damage can require additional microsoldering work.
Can a damaged HDMI port damage the PS5 motherboard?
Yes. Physical force can damage the HDMI connector as well as the solder pads, traces, and other components underneath or around it.
Why does my PS5 only show a picture when I move the HDMI cable?
That can indicate damaged HDMI pins, cracked solder joints, physical connector damage, or damage where the HDMI port attaches to the motherboard.
